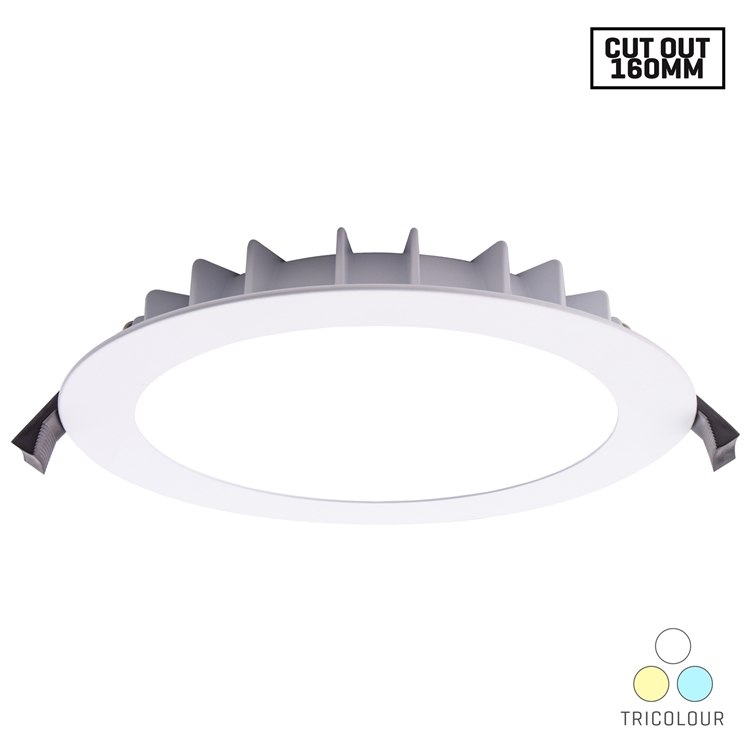

The Voltex Kempton 18W recessed LED downlight is truly a ‘Fit & Forget’ recessed luminaire! Highly energy-efficient and cool running for reduced fire risk. It's a sealed unit with no air gap into the ceiling cavity, maintaining the building envelope rating and preventing the loss of conditioned air.
This recessed downlight is guaranteed for a period of 7 years from date of purchase, covering both the LED light engine and the driver.
Perfect for new installations, especially in retail, commercial and hospitality applications. Ideal for retro fitting opportunities, wherever you can replace old halogen downlight 160mm cutout light fittings.
| Power | 18W |
| Input Voltage | 220-240V~ 50Hz (Luminiare is Class III) |
| Driver | Dimmable [Trailing edge], Class II, SELV, IC classification |
| Class |
IC-4 IC-F (New Zealand) |
| Light Source | LED |
| Light Colour / Temperature |
Warm White (3000K) Natural White (4000K) Cool White (5700K) |
| Luminous Flux (+/- 5%) |
1675m (3000K) 1904lm (4000K) 1729lm (5700K) |
| Ceiling Hole | 160mm |
| Beam Angle | 90° |
| Dimensions | 27mm Height x 180mm Outer Diameter (Driver Height: 27mm) |
| IP Rating |
IP54 (Light face) IP20 (All other parts incl. Driver) |
| Air Transfer Category | Closed |
| Thermal Insulation Clearance (IC Rating) | Side Abutted & Covered |
| Rated Lifespan | 40,000 Hours |
| Flange Colour | White |
| Connections | Includes Driver, Plug & Lead |
| Standards Complied With |
AS/NZS 60598.1, AS/NZS 60598.2.2 Including NZ Amendment A AS/NZS CISPR 15 |
| Side Clearance to Building Element (SCB) |
0mm |
| Height Clearance to Building Element (HCB) | 0mm |
